NSK

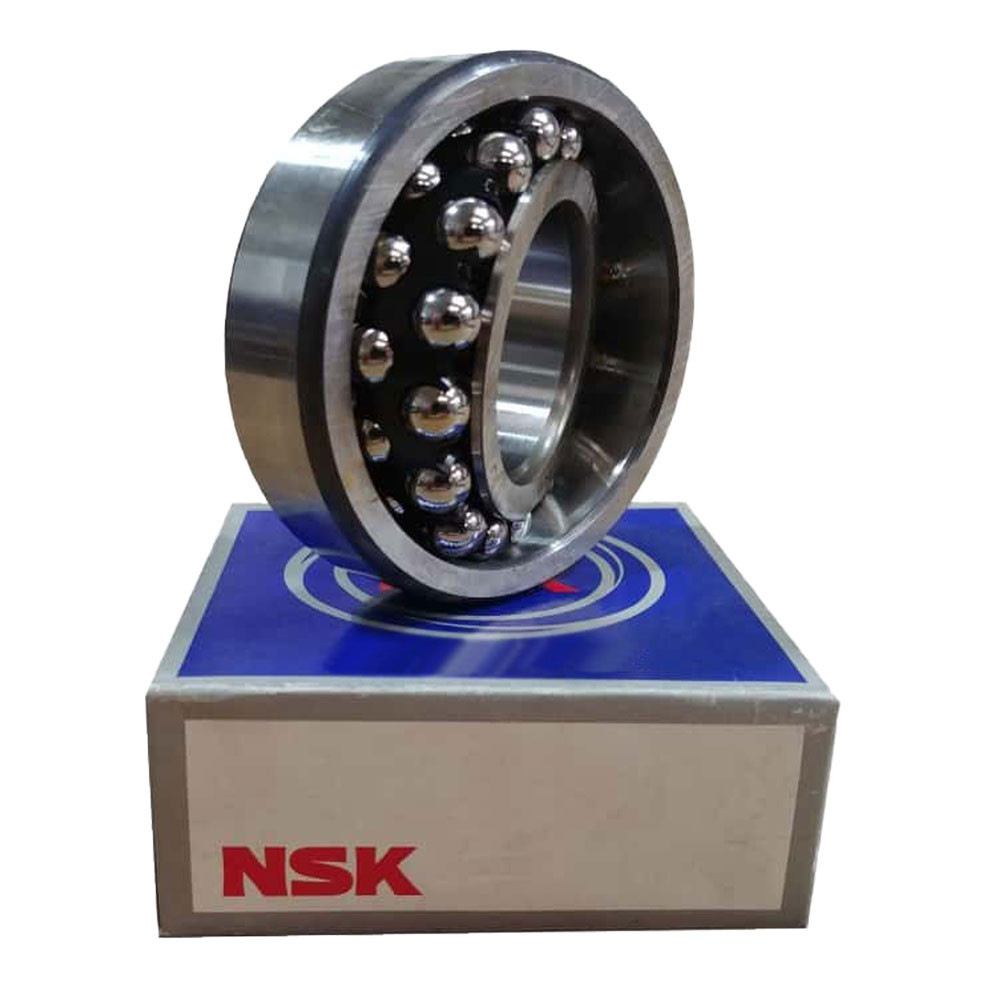

1304TN - NSK Double Row Angular Contact Bearings - 20x52x15mm

Name: 1304TN - NSK Double Row Angular Contact Bearings - 20x52x15mm
Brand: NSK
SKU: 1304tn-nsk
Availability: InStock

SKU: 1304tn-nsk

Availability: In Stock ✅

BULK PRICING: Click Here to Enquire

$55.30

Description

This 1304TN bearing is a double row, narrow series, metric self aligning bearing with a polyamide cage and a normal radial internal clearance. The bearing's dimensions are 20x52x15.

13	04			tn
Narrow	Bore Size - 20mm			PA66 Cage, Ball Centred	Normal Radial Internal Clearance

Product Information

BRAND:

SKU:1304tn-nsk

AVAILABILITY:In Stock ✅

WEIGHT:0.165 kg

Technical Data

Inside Diameter (mm):

20mm

Outside Diameter (mm):

52mm

Width (mm):

15mm

Cage Type:

Plastic

Seals Or Shields:

Open Type

Clearance:

Standard

Dynamic Load Rating (kN):

12.6

Static Load Rating (kN):

3.35

Grease Limiting Speed (r/min):

12000

Oil Limiting Speed (r/min):

15000
