SKF

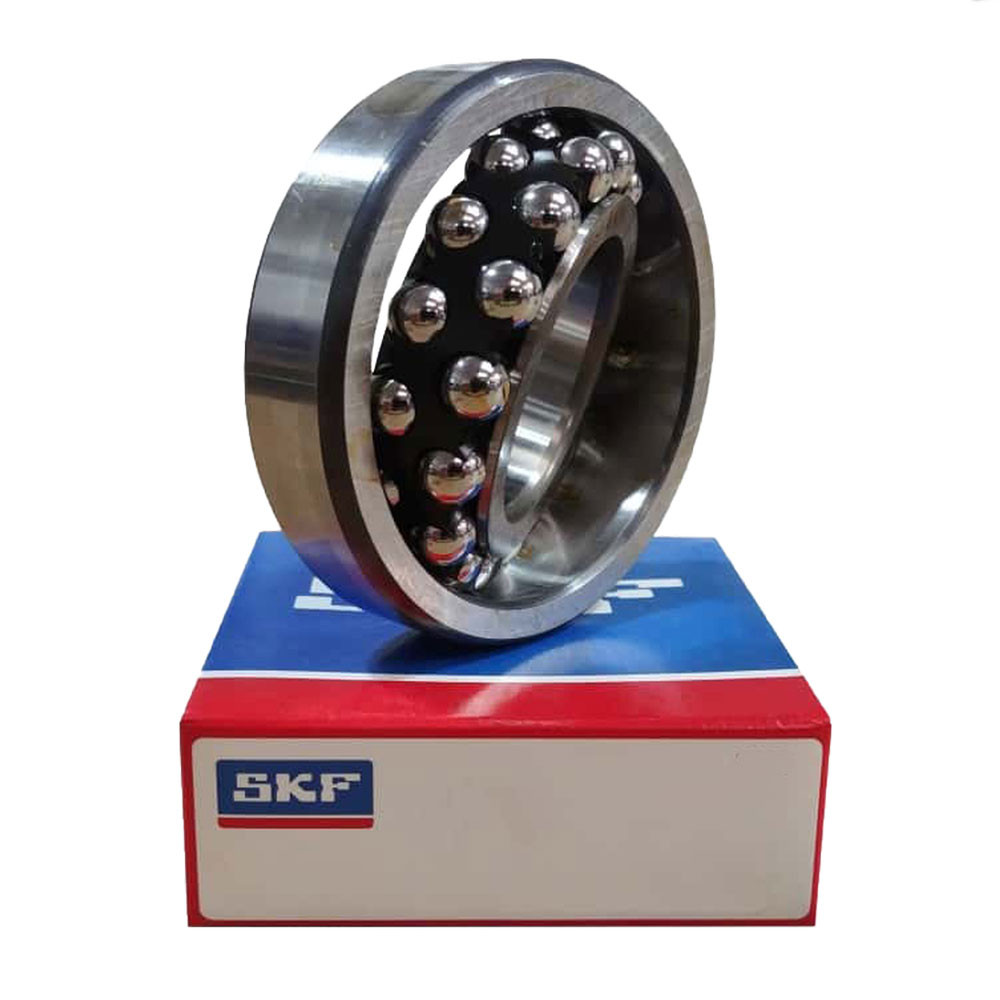

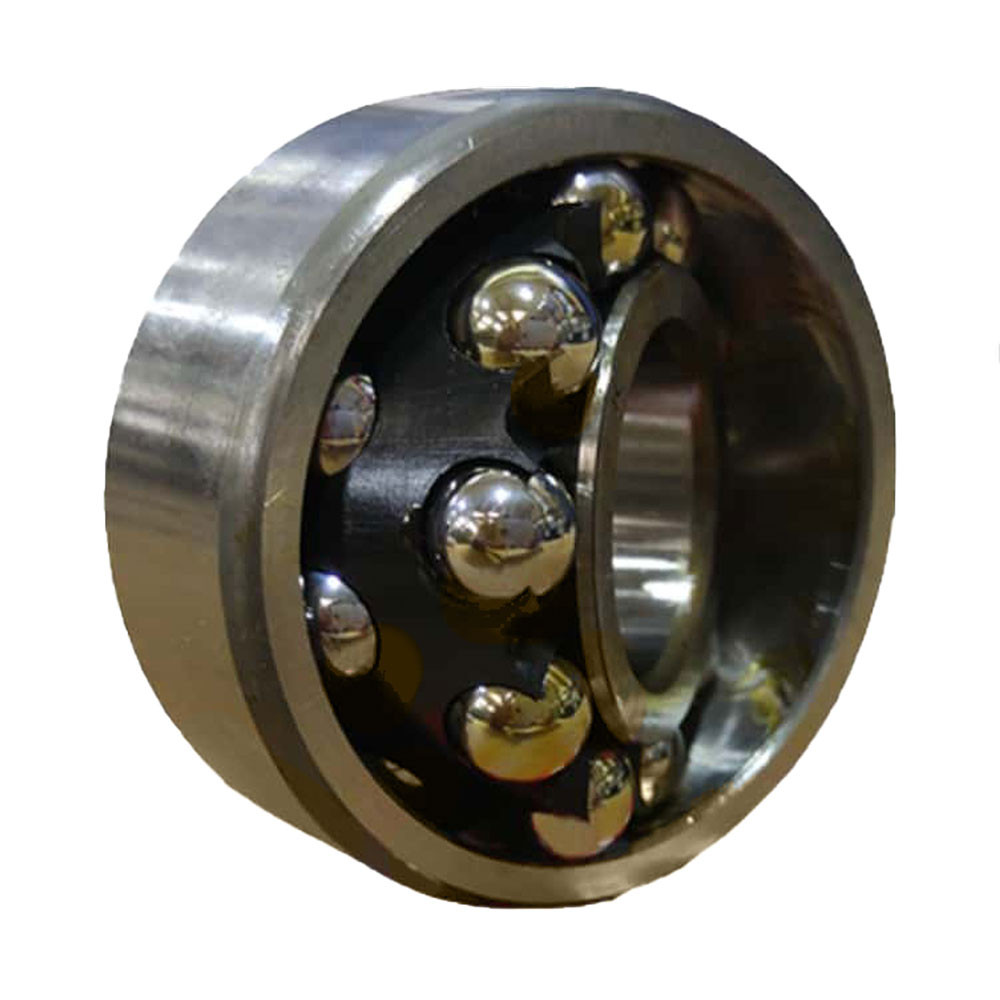

1308ETN9/C3 - SKF Double Row Self-Aligning Bearing - 40x90x23
SKU: 1308etn9/c3-skf
Availability: In Stock ✅
BULK PRICING: Click Here to Enquire
Description
This 1308ETN9/C3 bearing is a double row, narrow series, metric self aligning bearing with an optimized internal design for increased load carrying capacity, a glass fibre reinforced PA66 cage and a larger than normal radial internal clearance. The bearing's dimensions are 40x90x23.
| 13 | 08 | e | tn9 | c3 | |
|---|---|---|---|---|---|
| Narrow | Bore Size - 40mm | Extra Capacity | Glass Fibre Reinforced PA66 Cage, Ball Centred | Radial Internal Clearance Greater than Normal |
Product Information
Technical Data
Inside Diameter (mm):
40mm
Outside Diameter (mm):
90mm
Width (mm):
23mm
Cage Type:
Plastic
Seals Or Shields:
Open Type
Clearance:
C3
Dynamic Load Rating (kN):
33.8
Static Load Rating (kN):
11.2
Fatigue Load Rating (kN):
0.57
Reference Speed Rating (r/min):
14000
Limiting Speed Rating (r/min):
9500
DescriptionThis 1308ETN9/C3 bearing is a double row, narrow series, metric self aligning bearing with an optimized internal design for increased load carrying capacity, a glass fibre reinforced PA66 cage and a larger than normal radial internal clearance. The bearing's dimensions are 40x90x23.
Product InformationBRAND: SKU:1308etn9/c3-skf AVAILABILITY:In Stock ✅ WEIGHT:0.68 kg Technical DataInside Diameter (mm):40mm Outside Diameter (mm):90mm Width (mm):23mm Cage Type:Plastic Seals Or Shields:Open Type Clearance:C3 Dynamic Load Rating (kN):33.8 Static Load Rating (kN):11.2 Fatigue Load Rating (kN):0.57 Reference Speed Rating (r/min):14000 Limiting Speed Rating (r/min):9500 | ||||||||||||
