NSK

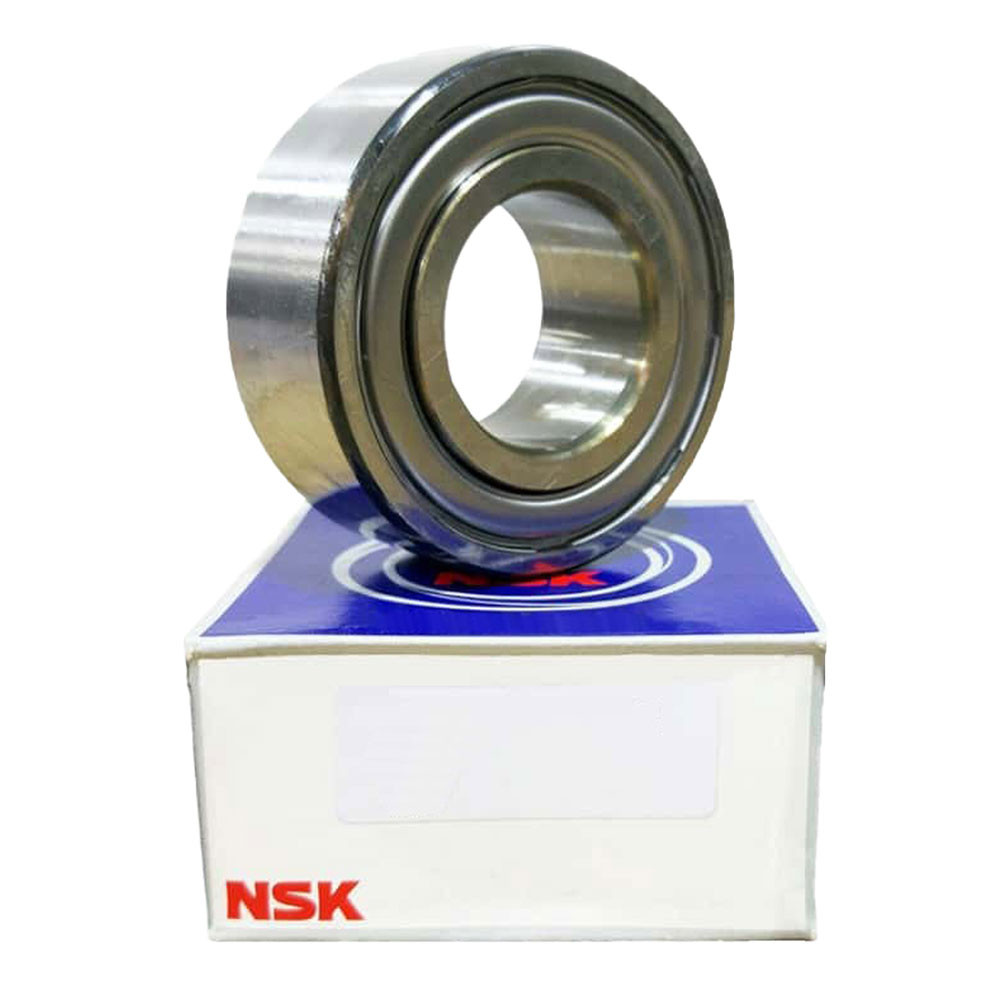

3202J - NSK Double Row Angular Contact Bearing - 15x35x15.9

Name: 3202J - NSK Double Row Angular Contact Bearing - 15x35x15.9
Brand: NSK
SKU: 3202j-nsk
Availability: InStock

SKU: 3202j-nsk

Availability: In Stock ✅

BULK PRICING: Click Here to Enquire

$76.35

Description

This 3202J bearing is a metric double row angular contact bearing with a stamped steel cage, ball centred and a normal radial internal clearance. The bearing's dimensions are 15x35x15.9.

32	02				J
Light Series	15mm - Bore Size	32° Contact Angle with Filling Slot			Steel Cage	Standard Internal Clearance

Product Information

BRAND:

SKU:3202j-nsk

AVAILABILITY:In Stock ✅

WEIGHT:0.072 kg

Technical Data

Inside Diameter (mm):

15mm

Outside Diameter (mm):

35mm

Width (mm):

15.9mm

Cage Type:

Steel

Seals Or Shields:

Open Type

Clearance:

Standard

Dynamic Load Rating (kN):

11.6

Static Load Rating (kN):

6.8

Grease Limiting Speed (r/min):

13000

Oil Limiting Speed (r/min):

18000

Description

This 3202J bearing is a metric double row angular contact bearing with a stamped steel cage, ball centred and a normal radial internal clearance. The bearing's dimensions are 15x35x15.9.

32	02				J
Light Series	15mm - Bore Size	32° Contact Angle with Filling Slot			Steel Cage	Standard Internal Clearance

Product Information

BRAND:

SKU:3202j-nsk

AVAILABILITY:In Stock ✅

WEIGHT:0.072 kg

Technical Data

Inside Diameter (mm):

15mm

Outside Diameter (mm):

35mm

Width (mm):

15.9mm

Cage Type:

Steel

Seals Or Shields:

Open Type

Clearance:

Standard

Dynamic Load Rating (kN):

11.6

Static Load Rating (kN):

6.8

Grease Limiting Speed (r/min):

13000

Oil Limiting Speed (r/min):

18000
