INA
SKU: na49/32-xl-ina
Availability: In Stock ✅
BULK PRICING: Click Here to Enquire

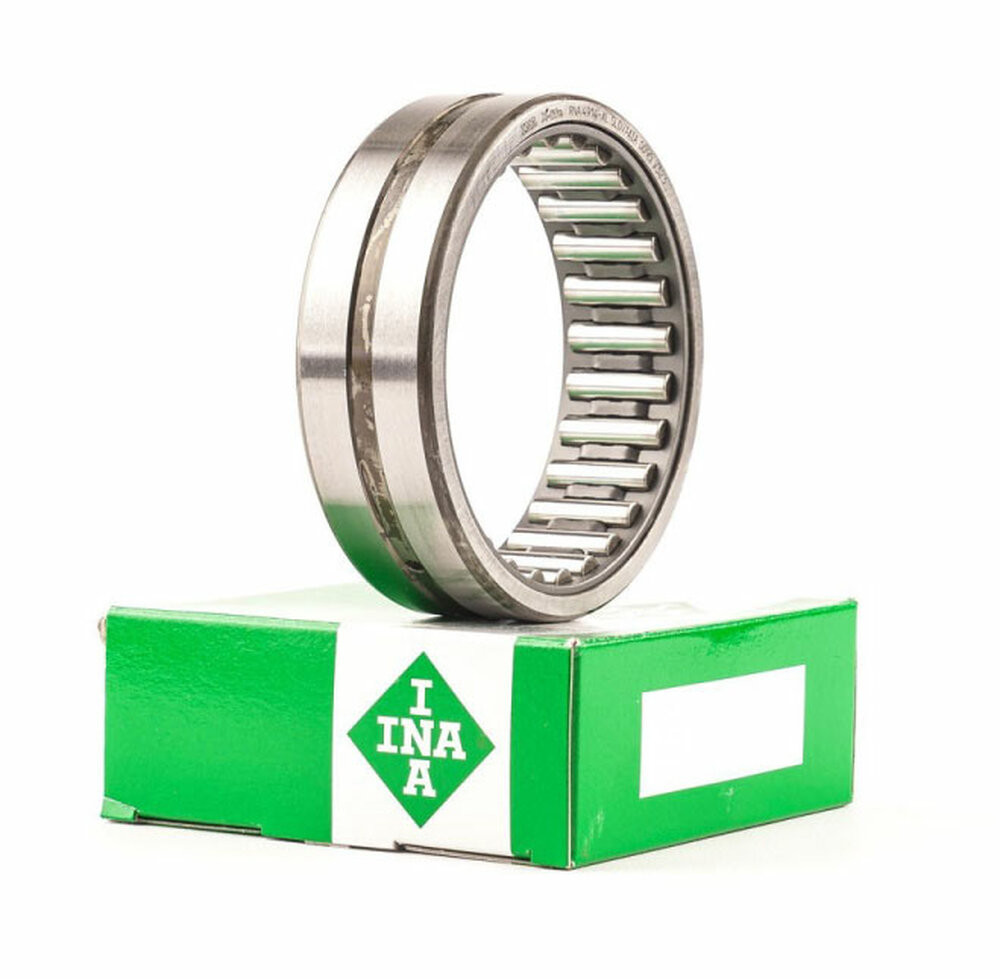

The NA49/32-XL is a Standard Duty Open Type, Single Row Machined Needle Roller Bearing with an Inner Ring. The Inner Ring is separable from the Cage and Outer Ring, while the Outer Ring is fixed to the Cage and has a lubrication groove and an oil hole. Bearings with an Inner Ring are used when the shaft being used isn't heat-treated and finished by grinding. In caged Needle Roller Bearings like this one, the Needles are precisely guided by the Cage to achieve ideal load distribution. These Bearings are designed for high radial load carrying capacity in radially compact arrangements and are used in most general purpose applications. The Bearing's dimensions are 32X52X20mm.
The IKO equivalent is NA49/32.
| NA | 49 | /32 | XL | |
|---|---|---|---|---|
| Single Row Caged Needle Roller Bearing | Dimension Series 49 | 32mm - Bore Size | X-Life Bearing | Including Inner Ring |
32
52
20
40
34.5
47.5
9.1
NA49/32
11100
6000
120°C/248°F
-30°C/-22°F
DescriptionThe NA49/32-XL is a Standard Duty Open Type, Single Row Machined Needle Roller Bearing with an Inner Ring. The Inner Ring is separable from the Cage and Outer Ring, while the Outer Ring is fixed to the Cage and has a lubrication groove and an oil hole. Bearings with an Inner Ring are used when the shaft being used isn't heat-treated and finished by grinding. In caged Needle Roller Bearings like this one, the Needles are precisely guided by the Cage to achieve ideal load distribution. These Bearings are designed for high radial load carrying capacity in radially compact arrangements and are used in most general purpose applications. The Bearing's dimensions are 32X52X20mm. The IKO equivalent is NA49/32.
Product InformationBRAND: SKU:na49/32-xl-ina AVAILABILITY:In Stock ✅ WEIGHT:0.159 kg Technical DataInside Diameter (mm):32 Outside Diameter (mm):52 Width (mm):20 Raceway Diameter Inner Ring (mm):40 Dynamic Load Rating (kN):34.5 Static Load Rating (kN):47.5 Fatigue Load Rating (kN):9.1 IKO Equivalent:NA49/32 Limiting Speed Rating (r/min):11100 Reference Speed Rating (r/min):6000 Max. Operating Temperature:120°C/248°F Min. Operating Temperature:-30°C/-22°F | ||||||||||
