IKO
SKU: naf254216-iko
Availability: In Stock ✅
BULK PRICING: Click Here to Enquire
The NAF254216 is a Light Duty Open Type, Single Row Machined Needle Roller Bearing with an Inner Ring. Both the Inner and Outer Ring are easily separable from the Needle Roller Cage. The Needle Roller Cage means that these Bearings have excellent rotational performance and a simple structure with high accuracy. These Bearings are most suitable for mass-production, high running accuracy applications like Machine Tools, Printing Equipment, and Textile Machinery. The bearing dimensions are 25X42X16MM.

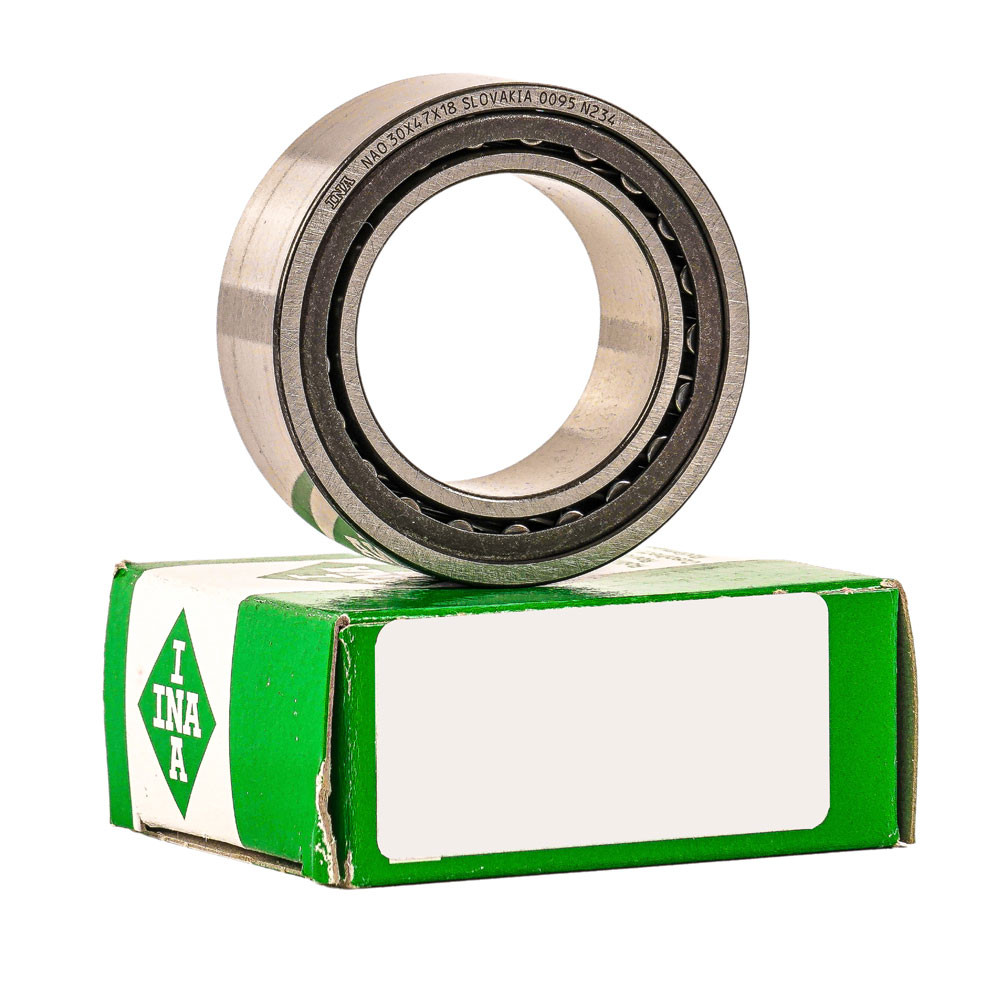

The INA equivalent is NAO25x42x16-IS1-XL.
| NAF | 25 | 42 | 16 | |
|---|---|---|---|---|
| Single Row Caged Needle Roller Bearing | 25mm Bore | 42mm OD | 16mm Width | Including Inner Ring |
25
42
16
30
20.8
28.4
NAO25x42x16-IS1-XL
17000
120°C/248°F
-20°C/-4°F
DescriptionThe NAF254216 is a Light Duty Open Type, Single Row Machined Needle Roller Bearing with an Inner Ring. Both the Inner and Outer Ring are easily separable from the Needle Roller Cage. The Needle Roller Cage means that these Bearings have excellent rotational performance and a simple structure with high accuracy. These Bearings are most suitable for mass-production, high running accuracy applications like Machine Tools, Printing Equipment, and Textile Machinery. The bearing dimensions are 25X42X16MM. The INA equivalent is NAO25x42x16-IS1-XL.
Product InformationBRAND: SKU:naf254216-iko AVAILABILITY:In Stock ✅ WEIGHT:0.094 kg Technical DataInside Diameter (mm):25 Outside Diameter (mm):42 Width (mm):16 Nominal Roller Set Bore Diameter (mm):30 Dynamic Load Rating (kN):20.8 Static Load Rating (kN):28.4 INA Equivalent:NAO25x42x16-IS1-XL Allowable Rotational Speed (r/min):17000 Max. Operating Temperature:120°C/248°F Min. Operating Temperature:-20°C/-4°F | ||||||||||
