SKF
QJ226N2MA/C3 - SKF Four Point Contact Bearings - 130x230x40mm
SKU: qj226n2ma/c3-skf
Availability: In Stock ✅
BULK PRICING: Click Here to Enquire
Description

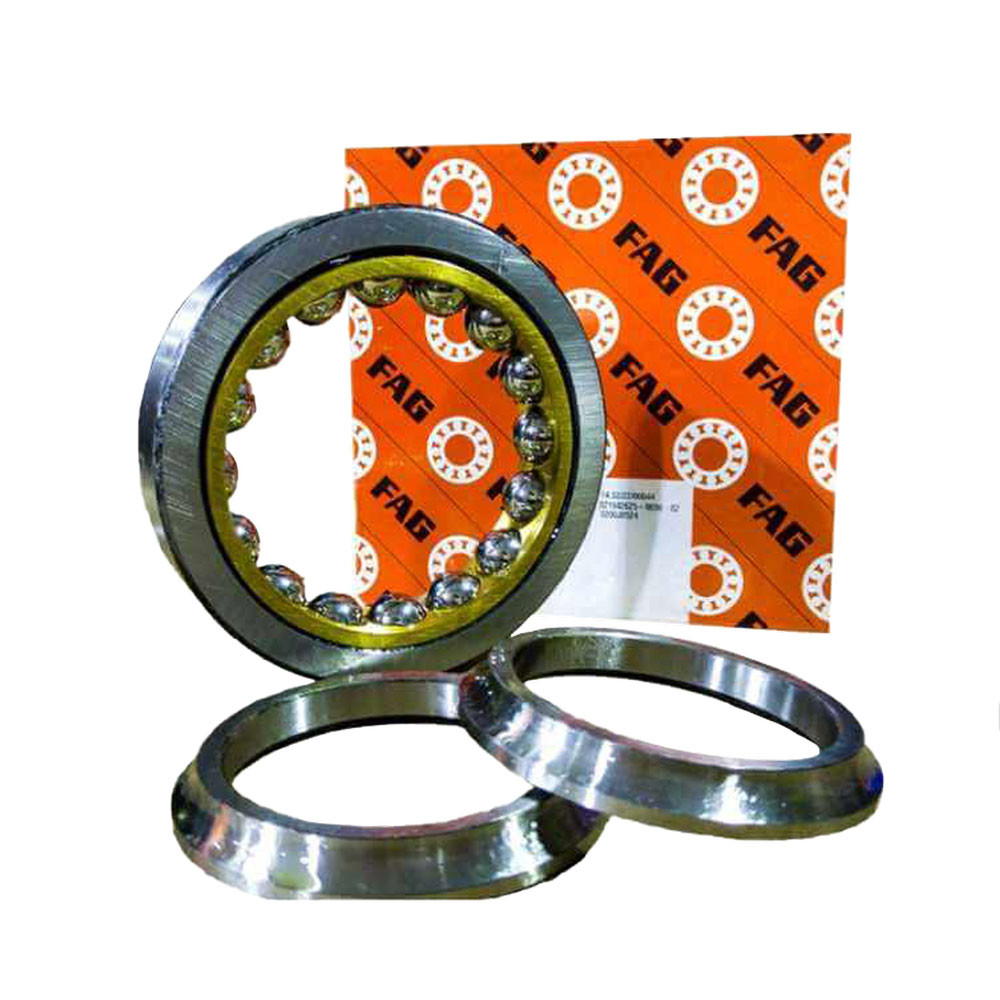

This QJ226N2MA/C3 bearing is a a four point contact bearings with two locating slots in the outer ring, 180° apart, a machined brass cage with the outer ring centred and a larger than normal internal clearance. The bearing's dimensions are 130x230x40.
| QJ2 | 26 | N2 | MA | /C3 |
|---|---|---|---|---|
| QJ 2 Series Four Point Contact Bearing | 130mm - Bore Size | Two Locating Slots in One Outer Ring Side Face, 180° Apart | Machined Brass Cage, Outer Ring Centred | Axial Internal Clearance Greater Than Normal |
Product Information
Technical Data
Inside Diameter (mm):
130mm
Outside Diameter (mm):
230mm
Width (mm):
40mm
Cage Type:
Brass
Seals Or Shields:
Open Type
Clearance:
C3
Dynamic Load Rating (kN):
310
Static Load Rating (kN):
400
Fatigue Load Rating (kN):
12.7
Reference Speed Rating (r/min):
3400
Limiting Speed Rating (r/min):
4800
