IKO
SKU: rna4864-iko
Availability: In Stock ✅
BULK PRICING: Click Here to Enquire

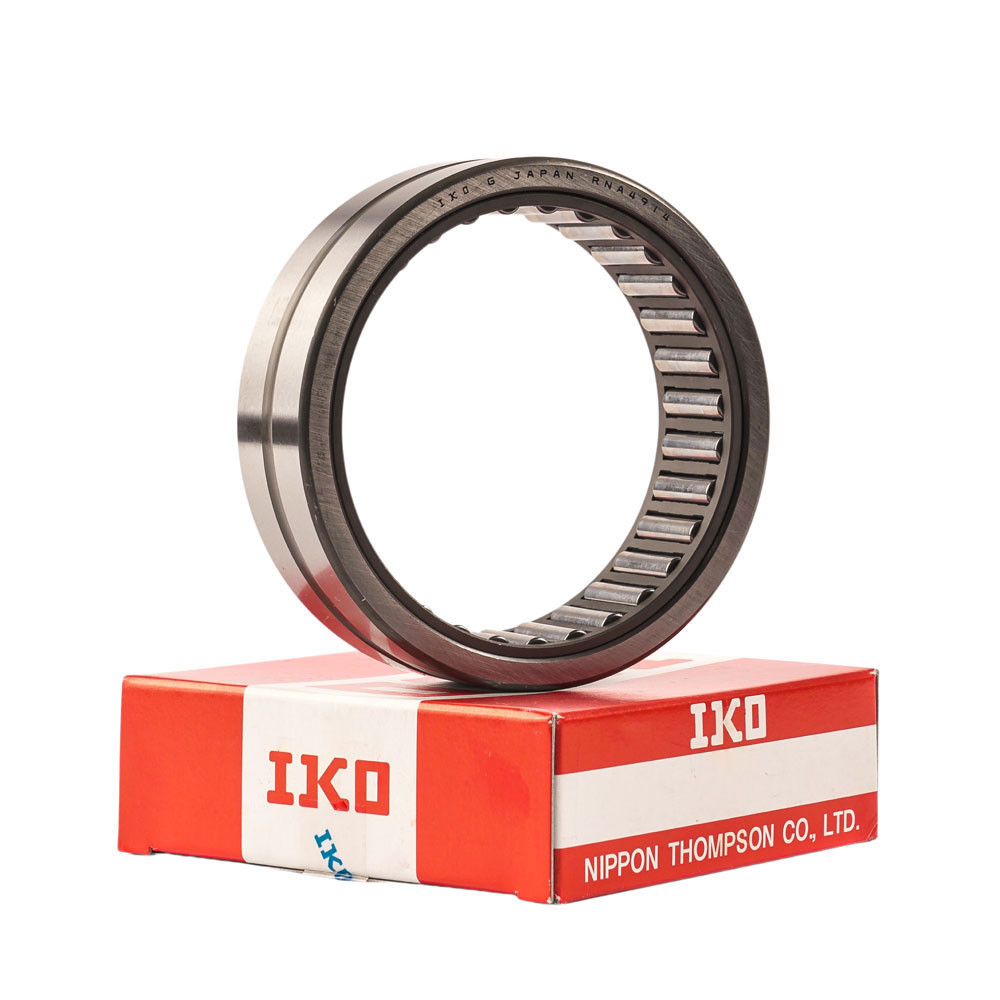

The RNA4864 is a Standard Duty Open Type, Single Row Machined Needle Roller Bearing with an oil groove and oil hole in the Outer Ring. This Bearing has no Inner Ring, meaning the Needle Rollers are mounted directly onto the shaft. As such, the Bearing has better running accuracy as it isn't affected by assembling an Inner Ring with the shaft. In caged Needle Roller Bearings like this one, the Needles are precisely guided by the Cage to achieve ideal load distribution. These Bearings are designed for high load carrying capacity in radially compact arrangements and are used in most general purpose applications. The Bearing's dimensions are 350X400X80mm.
The INA equivalent is RNA4864-XL.
| RNA | 48 | 64 |
|---|---|---|
| Single Row Caged Needle Roller Bearing | Dimension Series 48 | 350mm - Bore Size |
350
400
80
350
750
RNA4864-XL
635
2040
120°C/248°F
-20°C/-4°F
DescriptionThe RNA4864 is a Standard Duty Open Type, Single Row Machined Needle Roller Bearing with an oil groove and oil hole in the Outer Ring. This Bearing has no Inner Ring, meaning the Needle Rollers are mounted directly onto the shaft. As such, the Bearing has better running accuracy as it isn't affected by assembling an Inner Ring with the shaft. In caged Needle Roller Bearings like this one, the Needles are precisely guided by the Cage to achieve ideal load distribution. These Bearings are designed for high load carrying capacity in radially compact arrangements and are used in most general purpose applications. The Bearing's dimensions are 350X400X80mm. The INA equivalent is RNA4864-XL.
Product InformationBRAND: SKU:rna4864-iko AVAILABILITY:In Stock ✅ WEIGHT:14.1 kg Technical DataInside Diameter (mm):350 Outside Diameter (mm):400 Width (mm):80 Nominal Roller Set Bore Diameter (mm):350 Allowable Rotational Speed (r/min):750 INA Equivalent:RNA4864-XL Dynamic Load Rating (kN):635 Static Load Rating (kN):2040 Max. Operating Temperature:120°C/248°F Min. Operating Temperature:-20°C/-4°F | ||||||
Bulk PricingFor bulk discount on this product, contact our dedicated sales team today by filling out the form below: | ||||||
