IKO
SKU: rna4912-iko
Availability: In Stock ✅
BULK PRICING: Click Here to Enquire

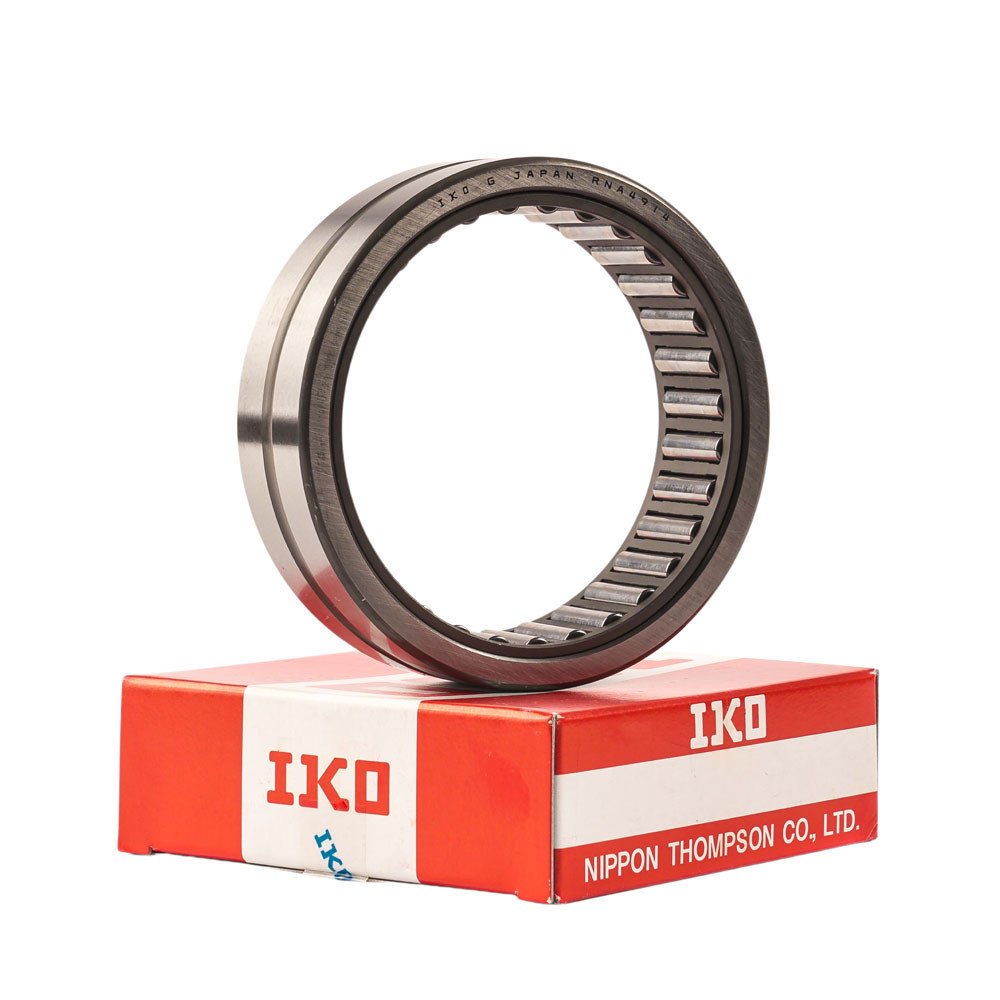

The RNA4912 is a Standard Duty Open Type, Single Row Machined Needle Roller Bearing with an oil groove and oil hole in the Outer Ring. This Bearing has no Inner Ring, meaning the Needle Rollers are mounted directly onto the shaft. As such, the Bearing has better running accuracy as it isn't affected by assembling an Inner Ring with the shaft. In caged Needle Roller Bearings like this one, the Needles are precisely guided by the Cage to achieve ideal load distribution. These Bearings are designed for high load carrying capacity in radially compact arrangements and are used in most general purpose applications. The Bearing's dimensions are 68X85X25mm.
The INA equivalent is RNA4912-XL.
| RNA | 49 | 12 |
|---|---|---|
| Single Row Caged Needle Roller Bearing | Dimension Series 49 | 68mm - Bore Size |
68
85
25
68
60.2
RNA4912-XL
105
6000
120°C/248°F
-20°C/-4°F
DescriptionThe RNA4912 is a Standard Duty Open Type, Single Row Machined Needle Roller Bearing with an oil groove and oil hole in the Outer Ring. This Bearing has no Inner Ring, meaning the Needle Rollers are mounted directly onto the shaft. As such, the Bearing has better running accuracy as it isn't affected by assembling an Inner Ring with the shaft. In caged Needle Roller Bearings like this one, the Needles are precisely guided by the Cage to achieve ideal load distribution. These Bearings are designed for high load carrying capacity in radially compact arrangements and are used in most general purpose applications. The Bearing's dimensions are 68X85X25mm. The INA equivalent is RNA4912-XL.
Product InformationBRAND: SKU:rna4912-iko AVAILABILITY:In Stock ✅ WEIGHT:0.285 kg Technical DataInside Diameter (mm):68 Outside Diameter (mm):85 Width (mm):25 Nominal Roller Set Bore Diameter (mm):68 Dynamic Load Rating (kN):60.2 INA Equivalent:RNA4912-XL Static Load Rating (kN):105 Allowable Rotational Speed (r/min):6000 Max. Operating Temperature:120°C/248°F Min. Operating Temperature:-20°C/-4°F | ||||||
Bulk PricingFor bulk discount on this product, contact our dedicated sales team today by filling out the form below: | ||||||
