INA
SKU: rna69/32-xl-ina
Availability: In Stock ✅
BULK PRICING: Click Here to Enquire

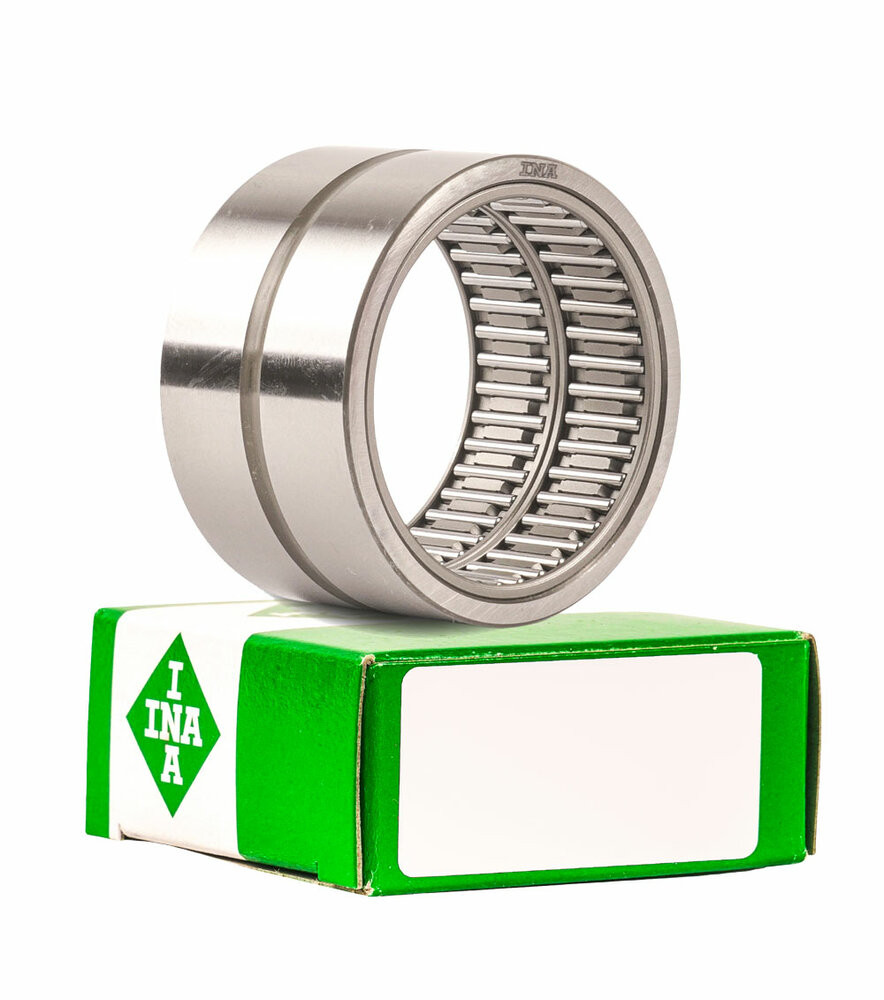

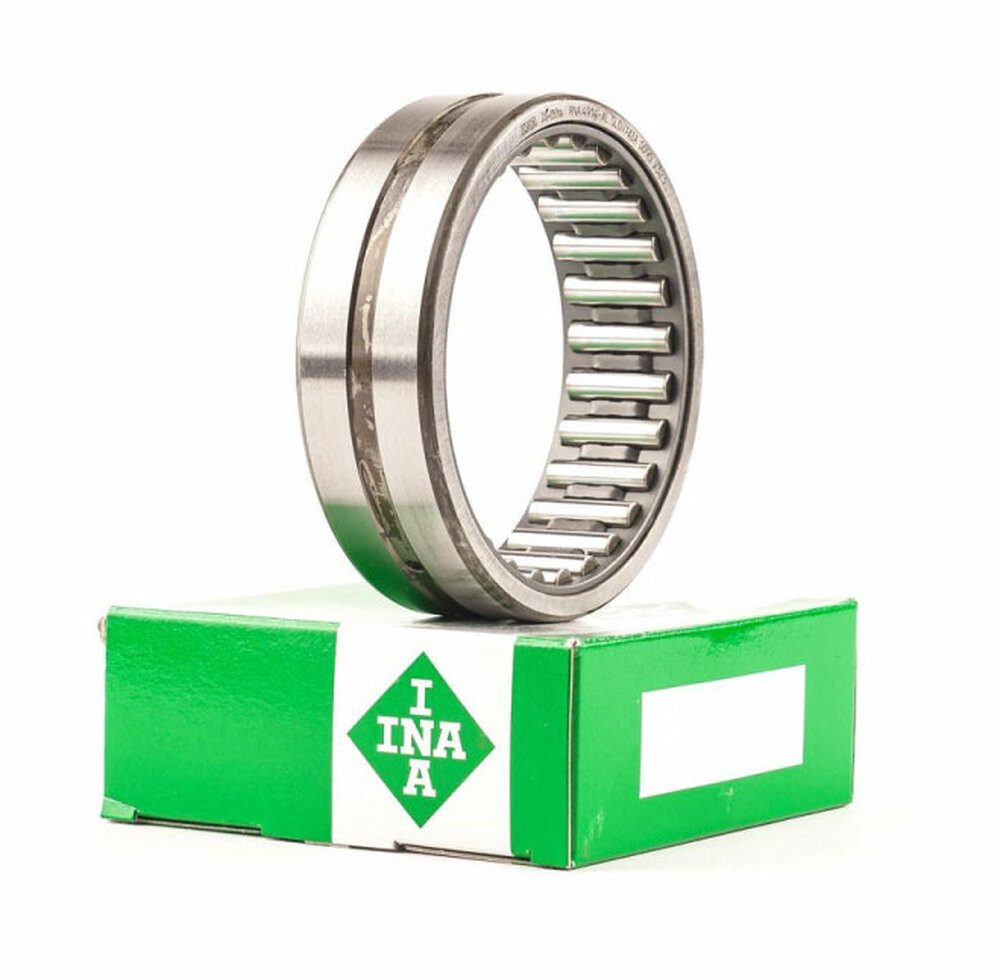

The RNA69/32-XL is a Standard Duty Open Type, Double Row Machined Needle Roller Bearing with a lubrication groove and oil hole in the Outer Ring. This Bearing has no Inner Ring, meaning the Needle Rollers are mounted directly onto the shaft. As such, the Bearing has better running accuracy as it isn't affected by assembling an Inner Ring with the shaft. In caged Needle Roller Bearings like this one, the Needles are precisely guided by the Cage to achieve ideal load distribution. These Bearings are designed for high load carrying capacity in radially compact arrangements and are used in most general purpose applications. The Bearing's dimensions are 40X52X36mm.
The IKO equivalent is RNA69/32.
| RNA | 69 | /32 | XL |
|---|---|---|---|
| Double Row Caged Needle Roller Bearing | Dimension Series 69 | 40mm - Bore Size | X-Life Bearing |
40
52
36
40
15.4
RNA69/32
53
11100
6500
82
120°C/248°F
-30°C/-22°F
DescriptionThe RNA69/32-XL is a Standard Duty Open Type, Double Row Machined Needle Roller Bearing with a lubrication groove and oil hole in the Outer Ring. This Bearing has no Inner Ring, meaning the Needle Rollers are mounted directly onto the shaft. As such, the Bearing has better running accuracy as it isn't affected by assembling an Inner Ring with the shaft. In caged Needle Roller Bearings like this one, the Needles are precisely guided by the Cage to achieve ideal load distribution. These Bearings are designed for high load carrying capacity in radially compact arrangements and are used in most general purpose applications. The Bearing's dimensions are 40X52X36mm. The IKO equivalent is RNA69/32.
Product InformationBRAND: SKU:rna69/32-xl-ina AVAILABILITY:In Stock ✅ WEIGHT:0.166 kg Technical DataInside Diameter (mm):40 Outside Diameter (mm):52 Width (mm):36 Under Roller Diameter (mm):40 Fatigue Load Rating (kN):15.4 IKO Equivalent:RNA69/32 Dynamic Load Rating (kN):53 Limiting Speed Rating (r/min):11100 Reference Speed Rating (r/min):6500 Static Load Rating (kN):82 Max. Operating Temperature:120°C/248°F Min. Operating Temperature:-30°C/-22°F | ||||||||
