IKO
SKU: rna6906-iko
Availability: In Stock ✅
BULK PRICING: Click Here to Enquire

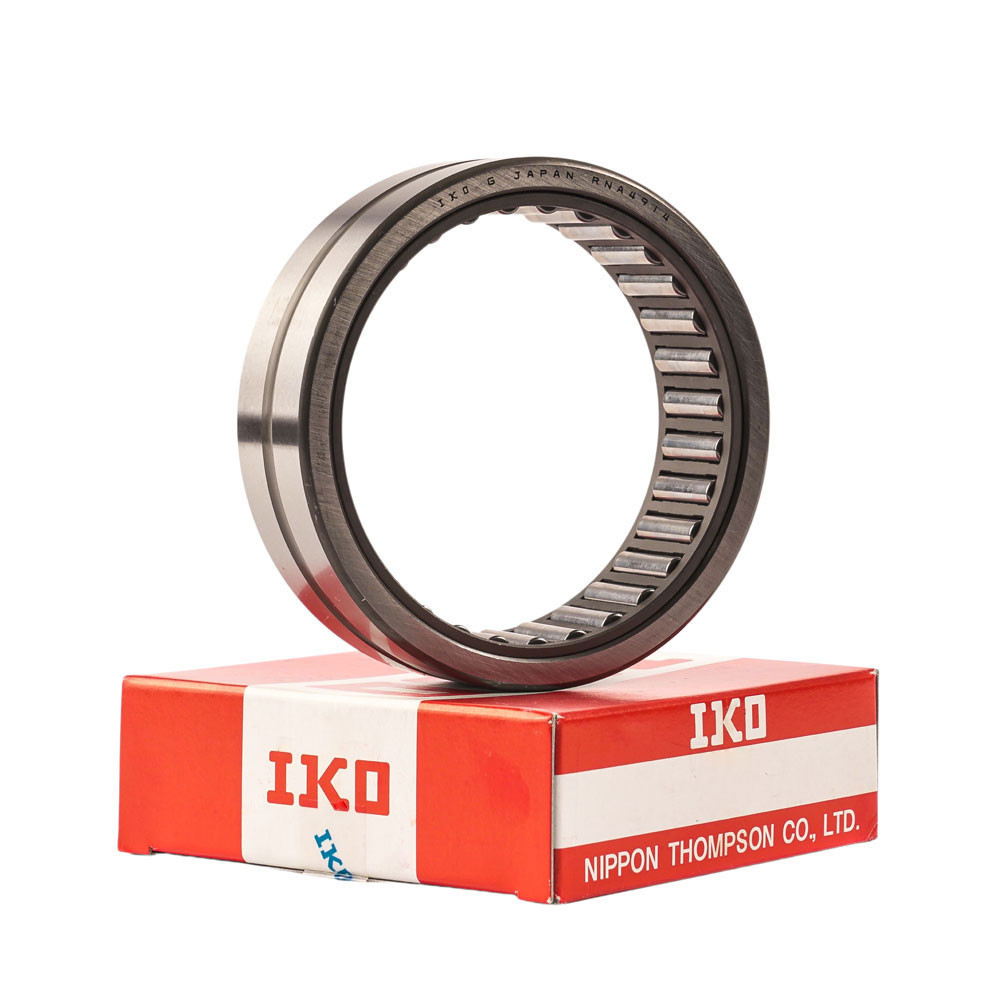

The RNA6906 is a Standard Duty Open Type, Single Row Machined Needle Roller Bearing with an oil groove and oil hole in the Outer Ring. This Bearing has no Inner Ring, meaning the Needle Rollers are mounted directly onto the shaft. As such, the Bearing has better running accuracy as it isn't affected by assembling an Inner Ring with the shaft. In caged Needle Roller Bearings like this one, the Needles are precisely guided by the Cage to achieve ideal load distribution. These Bearings are designed for high load carrying capacity in radially compact arrangements and are used in most general purpose applications. The Bearing's dimensions are 35X47X30mm.

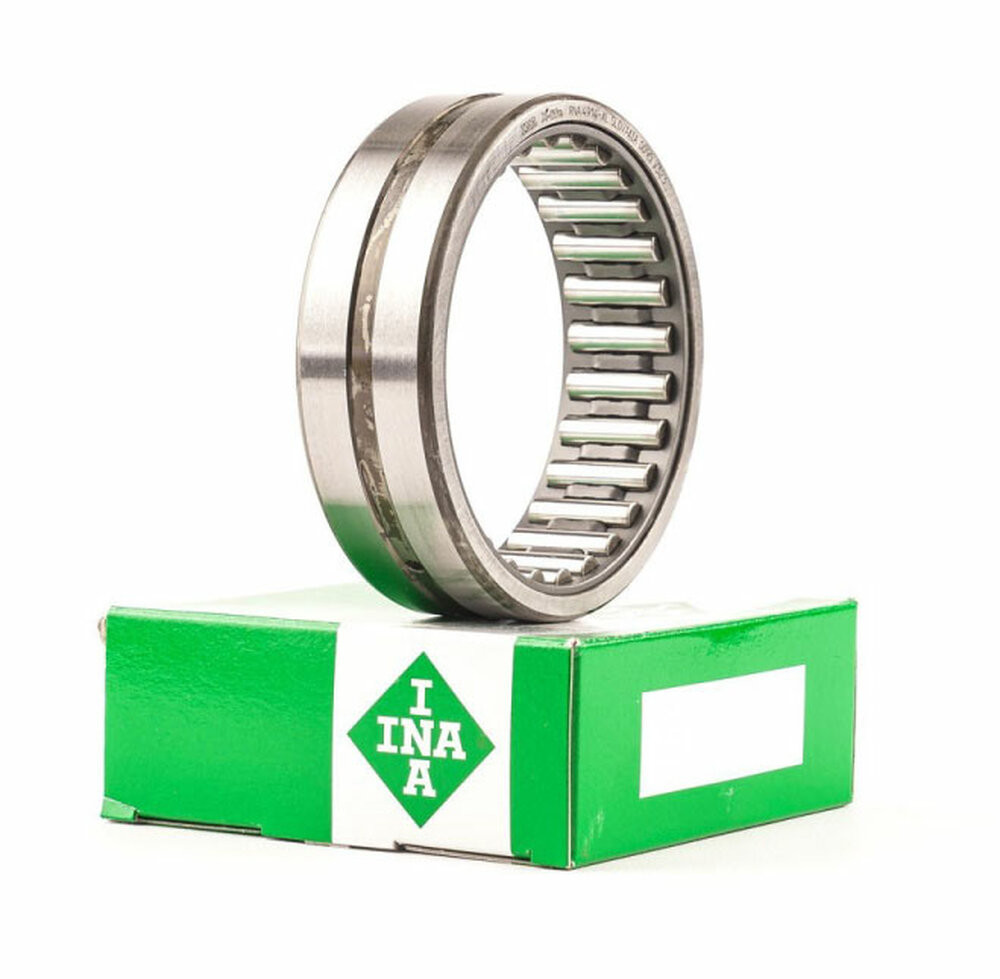

The INA equivalent is RNA6906-XL.
| RNA | 69 | 06 |
|---|---|---|
| Single Row Caged Needle Roller Bearing | Dimension Series 69 | 35mm - Bore Size |
35
47
30
35
RNA6906-XL
43
69
11000
120°C/248°F
-20°C/-4°F
DescriptionThe RNA6906 is a Standard Duty Open Type, Single Row Machined Needle Roller Bearing with an oil groove and oil hole in the Outer Ring. This Bearing has no Inner Ring, meaning the Needle Rollers are mounted directly onto the shaft. As such, the Bearing has better running accuracy as it isn't affected by assembling an Inner Ring with the shaft. In caged Needle Roller Bearings like this one, the Needles are precisely guided by the Cage to achieve ideal load distribution. These Bearings are designed for high load carrying capacity in radially compact arrangements and are used in most general purpose applications. The Bearing's dimensions are 35X47X30mm. The INA equivalent is RNA6906-XL.
Product InformationBRAND: SKU:rna6906-iko AVAILABILITY:In Stock ✅ WEIGHT:0.125 kg Technical DataInside Diameter (mm):35 Outside Diameter (mm):47 Width (mm):30 Nominal Roller Set Bore Diameter (mm):35 INA Equivalent:RNA6906-XL Dynamic Load Rating (kN):43 Static Load Rating (kN):69 Allowable Rotational Speed (r/min):11000 Max. Operating Temperature:120°C/248°F Min. Operating Temperature:-20°C/-4°F | ||||||
Bulk PricingFor bulk discount on this product, contact our dedicated sales team today by filling out the form below: | ||||||
