IKO
SKU: rnaf223516-iko
Availability: In Stock ✅
BULK PRICING: Click Here to Enquire

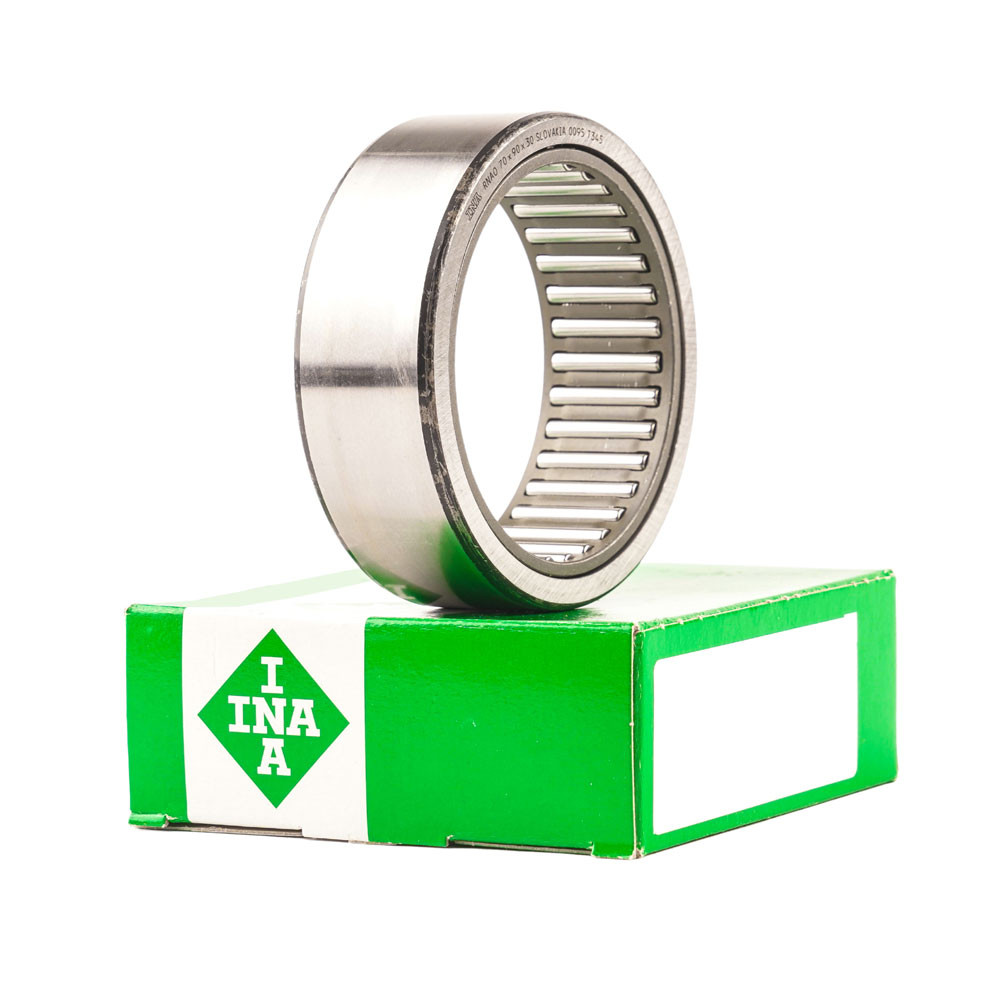

The RNAF223516 is a Light Duty Open Type, Single Row Machined Needle Roller Bearing. This Bearing has no Inner Ring, meaning the Needle Rollers are mounted directly onto the shaft. As such, the Bearing has better running accuracy as it isn't affected by assembling an Inner Ring with the shaft. In caged Needle Roller Bearings like this one, the Needles are precisely guided by the Cage to achieve ideal load distribution and the Cage is separable from the Outer Ring. These Bearings are designed for high load carrying capacity in radially compact arrangements and are used in most general purpose applications. The Bearing's dimensions are 22x35x16mm.
The INA equivalent is RNAO22x35x16-XL.
| RNAF | 22 | 35 | 16 |
|---|---|---|---|
| Single Row Caged Needle Roller Bearing | 22mm Bore | 35mm OD | 16mm Width |
22
35
16
22
RNAO22x35x16-XL
17.6
20.9
25000
120°C/248°F
-20°C/-4°F
DescriptionThe RNAF223516 is a Light Duty Open Type, Single Row Machined Needle Roller Bearing. This Bearing has no Inner Ring, meaning the Needle Rollers are mounted directly onto the shaft. As such, the Bearing has better running accuracy as it isn't affected by assembling an Inner Ring with the shaft. In caged Needle Roller Bearings like this one, the Needles are precisely guided by the Cage to achieve ideal load distribution and the Cage is separable from the Outer Ring. These Bearings are designed for high load carrying capacity in radially compact arrangements and are used in most general purpose applications. The Bearing's dimensions are 22x35x16mm. The INA equivalent is RNAO22x35x16-XL.
Product InformationBRAND: SKU:rnaf223516-iko AVAILABILITY:In Stock ✅ WEIGHT:0.059 kg Technical DataInside Diameter (mm):22 Outside Diameter (mm):35 Width (mm):16 Nominal Roller Set Bore Diameter (mm):22 INA Equivalent:RNAO22x35x16-XL Dynamic Load Rating (kN):17.6 Static Load Rating (kN):20.9 Allowable Rotational Speed (r/min):25000 Max. Operating Temperature:120°C/248°F Min. Operating Temperature:-20°C/-4°F | ||||||||
Bulk PricingFor bulk discount on this product, contact our dedicated sales team today by filling out the form below: | ||||||||
