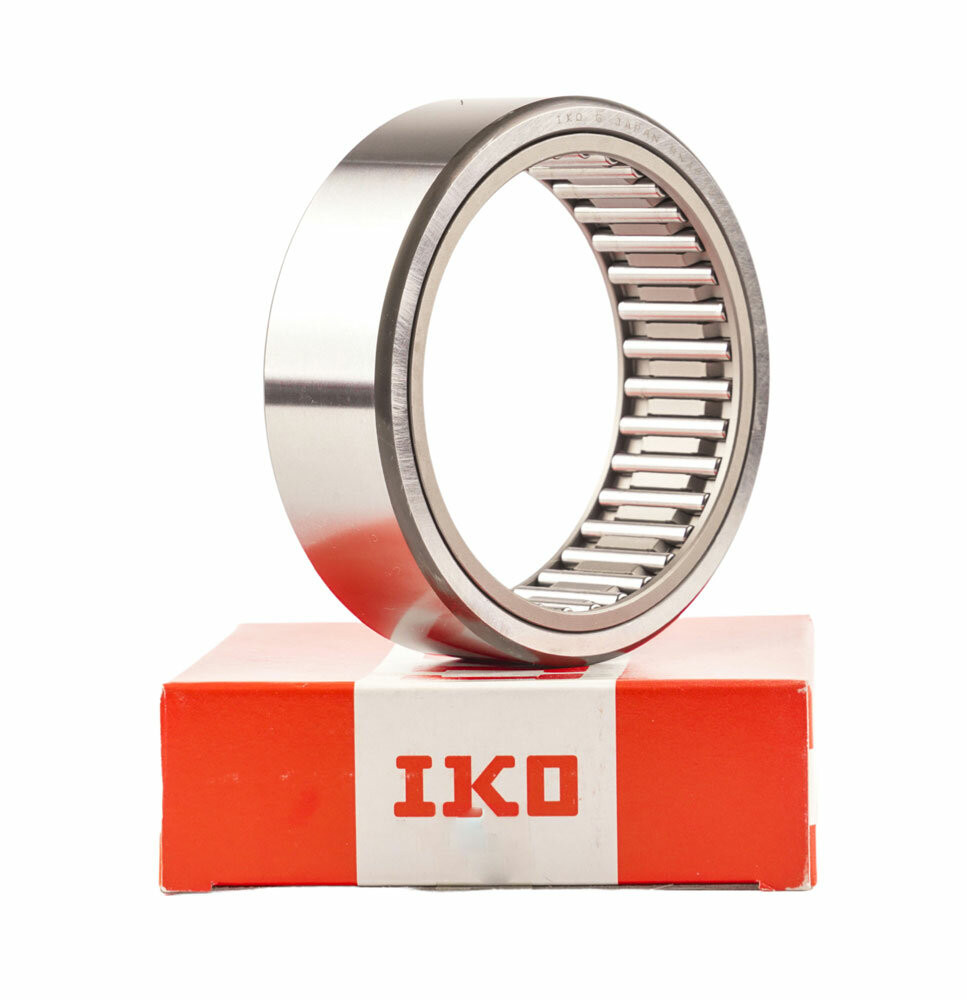

The RNAF7148N is a Light Duty Open Type, Single Row Machined Needle Roller Bearing. This Bearing has no Inner Ring, meaning the Needle Rollers are mounted directly onto the shaft. As such, the Bearing has better running accuracy as it isn't affected by assembling an Inner Ring with the shaft. In caged Needle Roller Bearings like this one, the Needles are precisely guided by the Cage to achieve ideal load distribution and the Cage is separable from the Outer Ring. These Bearings are designed for high load carrying capacity in radially compact arrangements and are used in most general purpose applications. The Bearing's dimensions are 7x14x8mm.
The INA equivalent is RNAO7x14x8-TV-XL.
| RNAF | 7 | 14 | 8 | N |
|---|---|---|---|---|
| Single Row Caged Needle Roller Bearing | 7mm Bore | 14mm OD | 8mm Width | Synthetic Resin Cage |
7
14
8
7
Synthetic Resin
RNAO7x14x8-TV-XL
65000
120°C/248°F
-20°C/-4°F
2.96
2.69
DescriptionThe RNAF7148N is a Light Duty Open Type, Single Row Machined Needle Roller Bearing. This Bearing has no Inner Ring, meaning the Needle Rollers are mounted directly onto the shaft. As such, the Bearing has better running accuracy as it isn't affected by assembling an Inner Ring with the shaft. In caged Needle Roller Bearings like this one, the Needles are precisely guided by the Cage to achieve ideal load distribution and the Cage is separable from the Outer Ring. These Bearings are designed for high load carrying capacity in radially compact arrangements and are used in most general purpose applications. The Bearing's dimensions are 7x14x8mm. The INA equivalent is RNAO7x14x8-TV-XL.
Product InformationBRAND: SKU:rnaf7148n-iko AVAILABILITY:In Stock ✅ WEIGHT:0.006 kg Technical DataInside Diameter (mm):7 Outside Diameter (mm):14 Width (mm):8 Nominal Roller Set Bore Diameter (mm):7 Cage Type:Synthetic Resin INA Equivalent:RNAO7x14x8-TV-XL Allowable Rotational Speed (r/min):65000 Max. Operating Temperature:120°C/248°F Min. Operating Temperature:-20°C/-4°F Dynamic Load Rating (kN):2.96 Static Load Rating (kN):2.69 | ||||||||||
