INA
SKU: rnao35x45x17-xl-ina
Availability: In Stock ✅
BULK PRICING: Click Here to Enquire

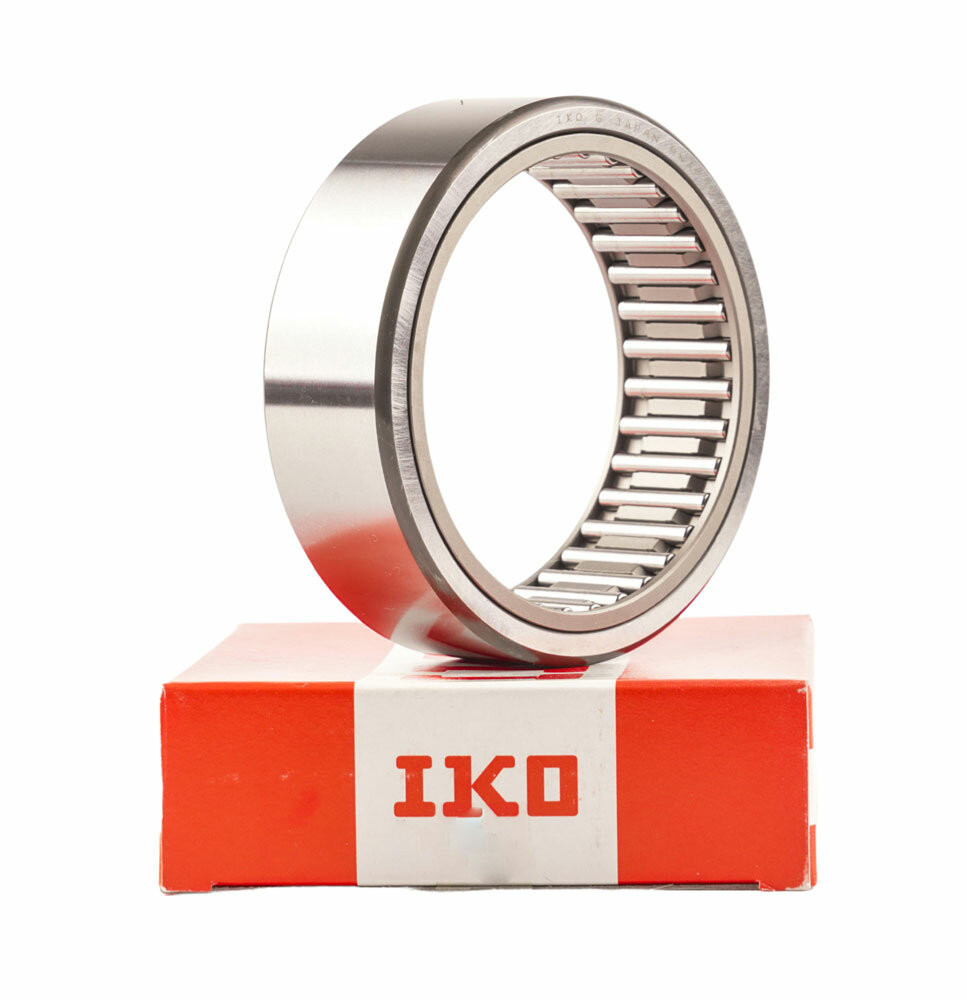

The RNAO35X45X17-XL is a Light Duty Open Type, Single Row Machined Needle Roller Bearing. This Bearing has no Inner Ring, meaning the Needle Rollers are mounted directly onto the shaft. As such, the Bearing has better running accuracy as it isn't affected by assembling an Inner Ring with the shaft. In caged Needle Roller Bearings like this one, the Needles are precisely guided by the Cage to achieve ideal load distribution and the Cage is separable from the Outer Ring. These Bearings are designed for high load carrying capacity in radially compact arrangements and are used in most general purpose applications. The bearing dimensions are 35X45X17mm.
The IKO equivalent is RNAF354517.
| RNAO | 35 | 45 | 17 | XL |
|---|---|---|---|---|
| Single Row Caged Needle Roller Bearing | 35mm Bore | 45mm OD | 17mm Width | X-Life Bearing |
35
45
17
35
23.5
38.5
RNAF354517
6.2
13100
7700
120°C/248°F
-30°C/-22°F
DescriptionThe RNAO35X45X17-XL is a Light Duty Open Type, Single Row Machined Needle Roller Bearing. This Bearing has no Inner Ring, meaning the Needle Rollers are mounted directly onto the shaft. As such, the Bearing has better running accuracy as it isn't affected by assembling an Inner Ring with the shaft. In caged Needle Roller Bearings like this one, the Needles are precisely guided by the Cage to achieve ideal load distribution and the Cage is separable from the Outer Ring. These Bearings are designed for high load carrying capacity in radially compact arrangements and are used in most general purpose applications. The bearing dimensions are 35X45X17mm. The IKO equivalent is RNAF354517.
Product InformationBRAND: SKU:rnao35x45x17-xl-ina AVAILABILITY:In Stock ✅ WEIGHT:0.069 kg Technical DataInside Diameter (mm):35 Outside Diameter (mm):45 Width (mm):17 Under Roller Diameter (mm):35 Dynamic Load Rating (kN):23.5 Static Load Rating (kN):38.5 IKO Equivalent:RNAF354517 Fatigue Load Rating (kN):6.2 Limiting Speed Rating (r/min):13100 Reference Speed Rating (r/min):7700 Max. Operating Temperature:120°C/248°F Min. Operating Temperature:-30°C/-22°F | ||||||||||
