INA
SKU: rnao45x62x40-zw-asr1-xl-ina
Availability: In Stock ✅
BULK PRICING: Click Here to Enquire

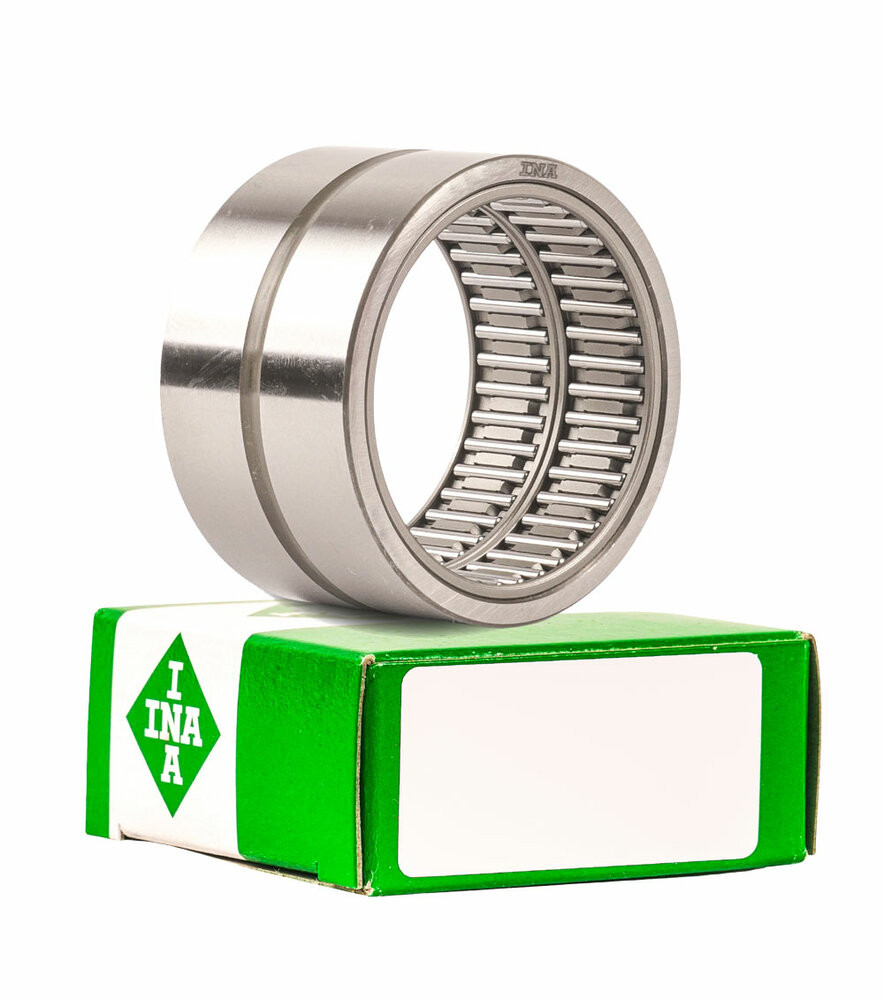

The RNAO45x62x40-ZW-ASR1-XL is a Light Duty Open Type, Double Row Machined Needle Roller Bearing. The Outer Ring includes a Lubrication Groove and Lubrication Hole. This Bearing has no Inner Ring, meaning the Needle Rollers are mounted directly onto the shaft. As such, the Bearing has better running accuracy as it isn't affected by assembling an Inner Ring with the shaft. In caged Needle Roller Bearings like this one, the Needles are precisely guided by the Cage to achieve ideal load distribution and the Cage is separable from the Outer Ring. These Bearings are designed for high load carrying capacity in radially compact arrangements and are used in most general purpose applications. The bearing dimensions are 45X62X40mm.
The IKO equivalent is RNAFW456240.
| RNAO | 45 | 62 | 40 | ZW | ASR1 | XL |
|---|---|---|---|---|---|---|
| Caged Needle Roller Bearing | 45mm Bore | 62mm OD | 40mm Width | Double Row | Lubrication Groove and Hole in Outer Ring | X-Life Bearing |
45
62
40
45
21.9
RNAFW456240
76
10000
5900
135
120°C/248°F
-30°C/-22°F
DescriptionThe RNAO45x62x40-ZW-ASR1-XL is a Light Duty Open Type, Double Row Machined Needle Roller Bearing. The Outer Ring includes a Lubrication Groove and Lubrication Hole. This Bearing has no Inner Ring, meaning the Needle Rollers are mounted directly onto the shaft. As such, the Bearing has better running accuracy as it isn't affected by assembling an Inner Ring with the shaft. In caged Needle Roller Bearings like this one, the Needles are precisely guided by the Cage to achieve ideal load distribution and the Cage is separable from the Outer Ring. These Bearings are designed for high load carrying capacity in radially compact arrangements and are used in most general purpose applications. The bearing dimensions are 45X62X40mm. The IKO equivalent is RNAFW456240.
Product InformationBRAND: SKU:rnao45x62x40-zw-asr1-xl-ina AVAILABILITY:In Stock ✅ WEIGHT:0.377 kg Technical DataInside Diameter (mm):45 Outside Diameter (mm):62 Width (mm):40 Under Roller Diameter (mm):45 Fatigue Load Rating (kN):21.9 IKO Equivalent:RNAFW456240 Dynamic Load Rating (kN):76 Limiting Speed Rating (r/min):10000 Reference Speed Rating (r/min):5900 Static Load Rating (kN):135 Max. Operating Temperature:120°C/248°F Min. Operating Temperature:-30°C/-22°F | ||||||||||||||
