IKO
SKU: taf304030-iko
Availability: In Stock ✅
BULK PRICING: Click Here to Enquire

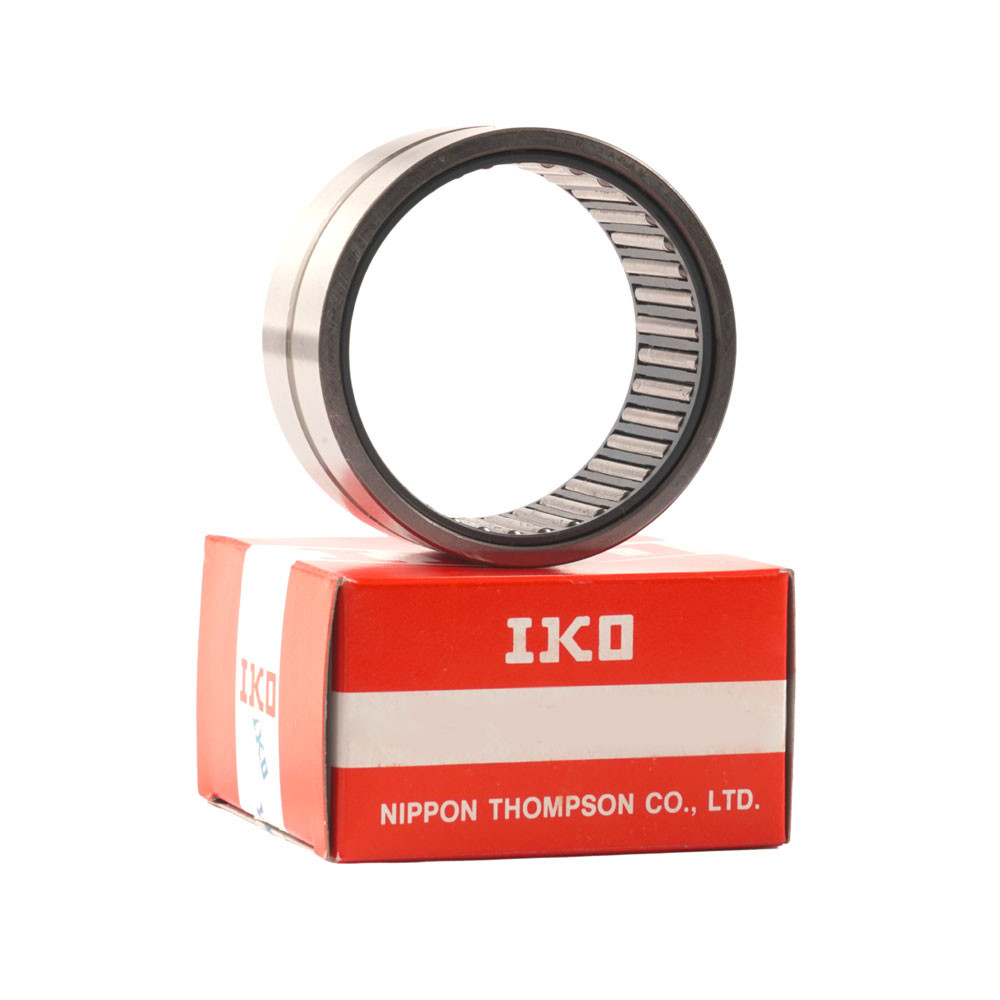

The TAF304030 is a Light Duty Open Type, Single Row Machined Needle Roller Bearing. This Bearing has no Inner Ring, meaning the Needle Rollers are mounted directly onto the shaft. As such, the Bearing has better running accuracy as it isn't affected by assembling an Inner Ring with the shaft. In caged Needle Roller Bearings like this one, the Needles are precisely guided by the Cage to achieve ideal load distribution. These Bearings are designed for high load carrying capacity in radially compact arrangements and are used in most general purpose applications. The Bearing's dimensions are 30x40x30mm.
The INA equivalent is NK30/30-TV-XL.
| TAF | 30 | 40 | 30 |
|---|---|---|---|
| Single Row Caged Needle Roller Bearing | 30mm Bore | 40mm OD | 30mm Width |
30
40
30
30
63.9
NK30/30-TV-XL
36
13000
120°C/248°F
-20°C/-4°F
DescriptionThe TAF304030 is a Light Duty Open Type, Single Row Machined Needle Roller Bearing. This Bearing has no Inner Ring, meaning the Needle Rollers are mounted directly onto the shaft. As such, the Bearing has better running accuracy as it isn't affected by assembling an Inner Ring with the shaft. In caged Needle Roller Bearings like this one, the Needles are precisely guided by the Cage to achieve ideal load distribution. These Bearings are designed for high load carrying capacity in radially compact arrangements and are used in most general purpose applications. The Bearing's dimensions are 30x40x30mm. The INA equivalent is NK30/30-TV-XL.
Product InformationBRAND: SKU:taf304030-iko AVAILABILITY:In Stock ✅ WEIGHT:0.098 kg Technical DataInside Diameter (mm):30 Outside Diameter (mm):40 Width (mm):30 Nominal Roller Set Bore Diameter (mm):30 Static Load Rating (kN):63.9 INA Equivalent:NK30/30-TV-XL Dynamic Load Rating (kN):36 Allowable Rotational Speed (r/min):13000 Max. Operating Temperature:120°C/248°F Min. Operating Temperature:-20°C/-4°F | ||||||||
Bulk PricingFor bulk discount on this product, contact our dedicated sales team today by filling out the form below: | ||||||||
