SKF

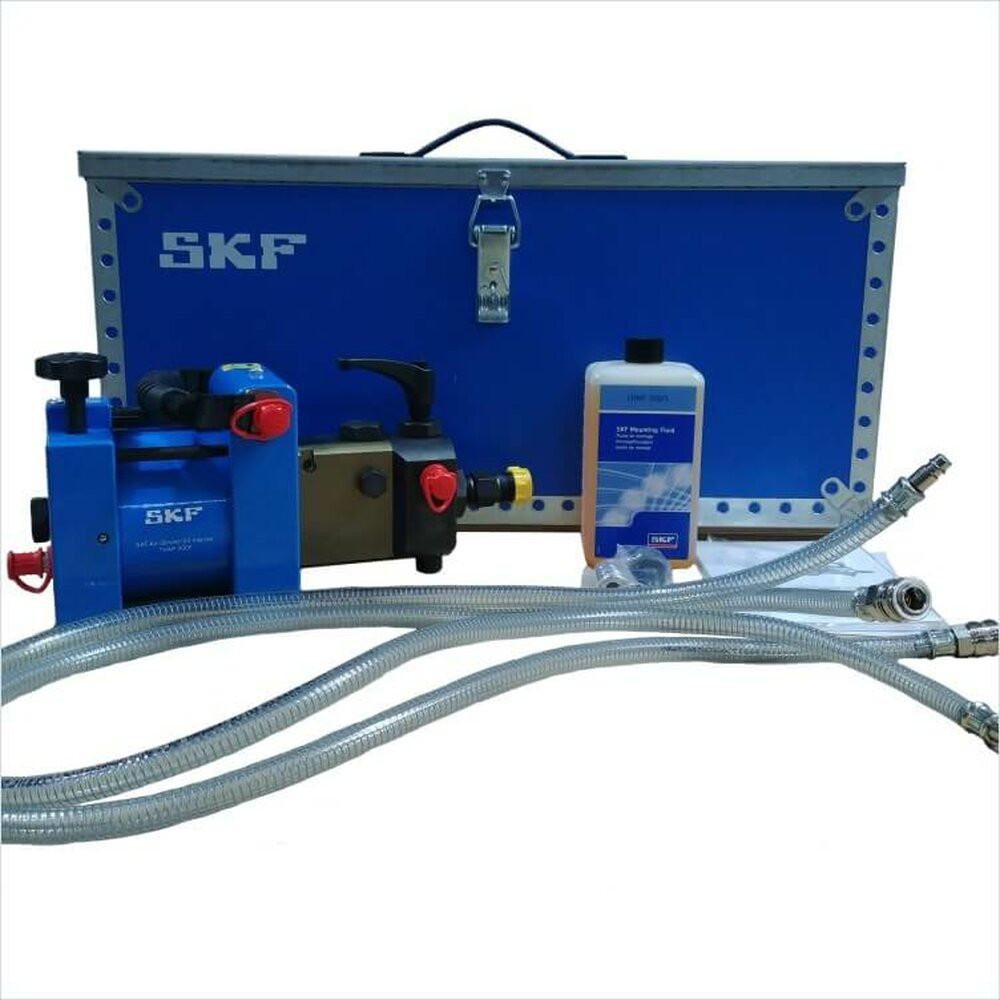

THAP300E - SKF Air Driven Oil Injector
SKU: thap300e-skf
Availability: In Stock ✅
BULK PRICING: Click Here to Enquire
Description
The SKF air-driven hydraulic pumps are available in four different pressure versions. they can be used for mounting OK couplings, large pressure joints such as bearings, flywheels, railway wheels and couplings. the full unit consists of a hydraulic pump or high pressuere oil injector, driven by an air motor.
Related Documents
Product Information
Technical Data
Nominal Hydraulic Pressure:
300 Mpa / 43500 psi
Operating Air Pressure:
7 bar / 101.5 psi
Length:
405mm / 16 Inch
Width 1:
171mm / 6.7 Inch
Height 1:
202mm / 8 Inch
Oil Outlet:
G3/4
Volume Per Stroke:
0.83 cm³ / 0.05 Inch³
DescriptionThe SKF air-driven hydraulic pumps are available in four different pressure versions. they can be used for mounting OK couplings, large pressure joints such as bearings, flywheels, railway wheels and couplings. the full unit consists of a hydraulic pump or high pressuere oil injector, driven by an air motor. Related DocumentsProduct Data Sheet
Instructions for Use
Product InformationBRAND: SKU:thap300e-skf AVAILABILITY:In Stock ✅ WEIGHT:13 kg Technical DataNominal Hydraulic Pressure:300 Mpa / 43500 psi Operating Air Pressure:7 bar / 101.5 psi Length:405mm / 16 Inch Width 1:171mm / 6.7 Inch Height 1:202mm / 8 Inch Oil Outlet:G3/4 Volume Per Stroke:0.83 cm³ / 0.05 Inch³ |
Bulk PricingFor bulk discount on this product, contact our dedicated sales team today by filling out the form below: |
Delivery Information We have one of the largest online stocks of bearings and ancillary components available online anywhere in the world, and we take pride in great customer service, superb products, and express delivery to over 110 countries worldwide. If you have any specific delivery requirements call our sales team on 646 650 4572 or contact us here and they will be happy to help you. |
Pressure gauge 0 - 400 MPa (58,000 psi) 1077589/3
Pressure gauge protection sleeve 100mm TMJG S100
High pressure pipe (2 m /6.5 ft) 227957 A/400MP
Carrying case 728245/3AÂ
Set of hoses THAP E-2
Air valve assembly THAP E-3
Air inlet block THAP E-4Â
Air motor assembly THAP E-5
Oil inlet block THAP E-6
Oil injector assembly THAP 300E-7
Release valve assembly THAP E-8
Connection nipple assembly THAP E-9
Repair kit THAP 300E-10
Gauge plug assembly THAP E-11
Carrying handle THAP E-12
Protection device THAP E-PC1
Pressure gauge protection sleeve (for /SK1) TMJG S100
Mounting fluid (5 litre) LHMF 300/5
Dismounting fluid (5 litre) LHDF 900/5
|
