Description

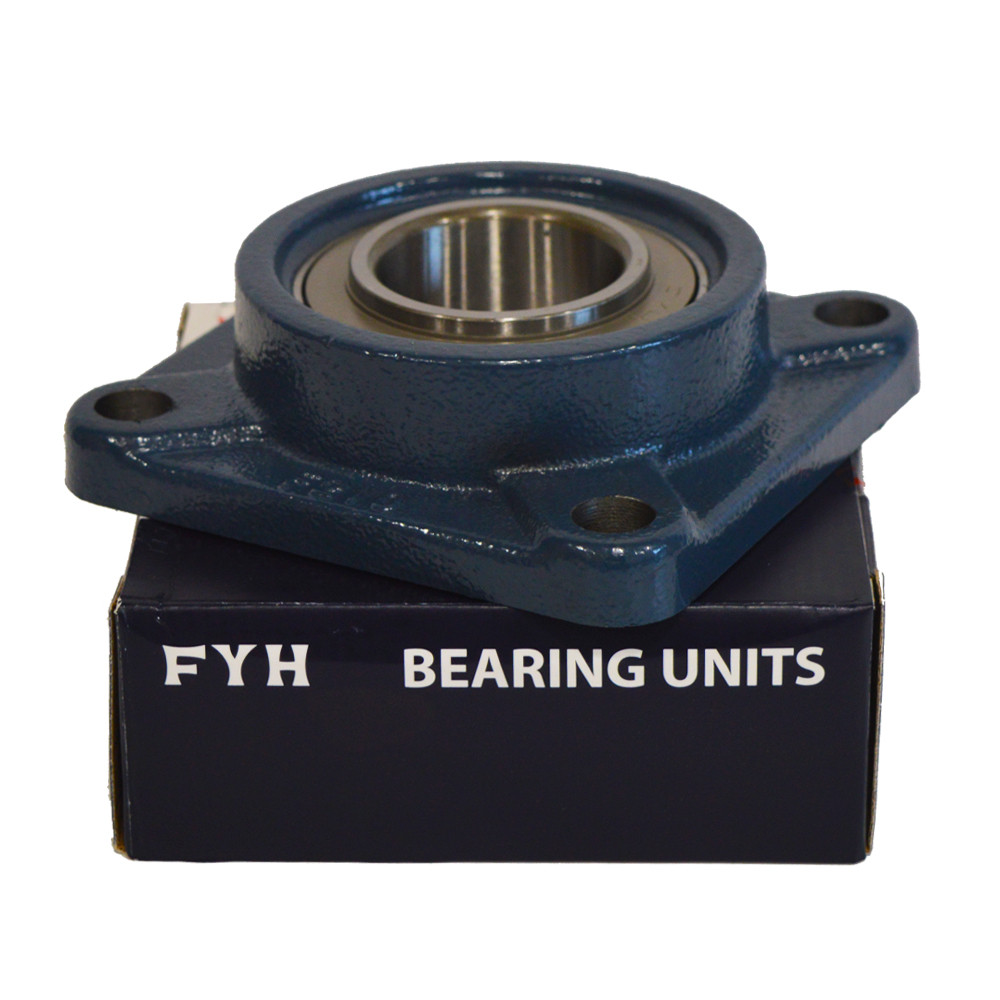

Discover the UKF318 from FYH, the perfect solution for your flanged assembly requirements. This Square Flanged Bearing Unit comes pre-lubricated and fitted with a sealed Bearing Insert for the highest durability and longevity. Crafted from high-quality cast iron, the UKF318 Unit boasts exceptional strength and reliability, making it suitable for a wide range of applications. This four-bolt flanged unit has hexagon socket set screws and a tapered bore. The bearing unit should be fitted on an adapter sleeve.
Key Features
Self-Aligning Ability
The convex shape of the Bearing Inserts outer ring along with the concave sphered shape inside the housing gives this UKF318 Square Flanged Unit the ability to self-align, adjust for shaft deviation, and reduce abnormal load.
Replaceable Inserts
The UKF318 Bearing Unit has a UK318 Bearing Insert which can be easily removed from the F318 housing and replaced. Other compatible inserts can be used in the same housing.
Smooth Operation
Fitted with a new sealed Bearing Insert and housing, the UKF318 ensures smooth operation, easy mounting, and high reliability, guaranteeing optimal performance in diverse environments.
Re-lubrication Capability
The UKF318 allows for effortless re-lubrication via the grease hole and a grease fitting, promoting smooth operation and prolonging the lifespan of the bearing assembly.
Versatile Industry Applications
These Flanged Housing Units are relied upon in many industries, including mining, agriculture, manufacturing and production, and industrial engineering.
Corrosion Protection
Constructed with a single cast housing piece, the UKF318 offers basic protection against corrosion, enhancing durability and longevity.
Product Information
Technical Data
Dynamic Load Rating (kN) :
143
Static Load Rating (kN) :
107
Bearing Insert :
UK318
Bolt Hole Center (mm) :
216mm
Housing Length (mm) :
280mm
Housing Number :
F318
Bolt Size :
M30, 1.1/8
Width (B) :
86mm
